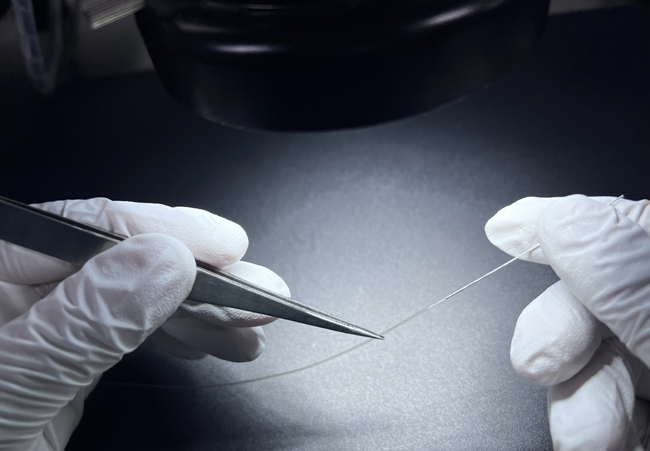

ultra thin wall ptfe liner

Ultra-thin-wall PTFE Liner Aokeray

Aokeray PTFE Ultra-thin-wall liners stand out as an excellent option for advanced vascular catheter designs, thanks to its industry-leading sizing, tight tolerances, and high-performance properties. These super-thin-walled liners can be customized with wall thicknesses ranging from 0.001” to 0.005” (0.0254 mm to 0.127 mm), offering precise control with tolerances as low as ± 0.0005″ (0.0127 mm). Additionally, they maintain uniform inside and outside diameters, ensuring consistent performance and reliability in demanding medical applications.

Why Aokeray’s Ultra-thin-wall liner ?

Aokeray’s Ultra-thin-wall liner is a similar development of Sub-Lite-Wall™ but with great cost down.

EXTRUDED PTFE Ultra-thin-wall Liner
Process Ram Extrusion
Material PTFE
Inside Diameter (ID) 0.013″ to 0.500″
(0.33 mm to 12.70 mm)
ID Tolerance +/- 0.0008″ to 0.003″
(0.01 mm to 0.0762 mm)
Nominal Wall Thickness 0.001″ to 0.005″
(0.0254 mm to 0.127 mm)
Wall Tolerance +/- 0.0005″ to 0.001″
(0.0127 mm to 0.0254 mm)
Cut Length 86″ Max
(2184.4 mm)
Surface Treatment Etched, Tie Layer
Sterilization Autoclave, EtO
ultra thin wall liner ptfe

Catheters – Our Ultra-thin-wall products are designed to support various critical functions and constructions across a range of catheter types, from steerable and deflectable catheters to the smallest microcatheters.

Endoscopy – Our Ultra-thin-wall inner liners for catheters offer exceptional lubricity, electrical performance, chemical resistance, and are compatible with UV sterilization. With an extremely low coefficient of friction, these liners are perfect as inner walls for seamless instrument passage.

Introducer Sheaths – These devices facilitate targeted interventions. Our sheath construction components prioritize lubricity, flexibility, and small diameter size, making them ideal for introducer sheaths.

A: Ultra-thin-wall PTFE Liner Aokeray is mainly used in advanced vascular catheter design for the manufacturing of vascular catheters in the medical field, such as vascular placement and angiography.

A: Ultra-thin-wall PTFE Liner Aokeray can be customized for wall thicknesses ranging from 0.001“ to 0.005” (0.0254 mm to 0.127 mm) with very precise tolerance control down to ±0.0005” (0.0127 mm).

A: Ultra-thin-wall PTFE Liner Aokeray offers industry-leading dimensions, tight tolerances, and high-performance properties. It has a very thin wall thickness that can reach ultra-thin levels, while maintaining a uniform inner and outer diameter that provides reliable performance and consistent performance. In addition, it is manufactured with PTFE material, which has better chemical inertness, high temperature resistance and low friction characteristics, making it suitable for use in medical devices.

A: Ultra-thin-wall PTFE Liner Aokeray can be sterilized by autoclaving (Autoclave) or Ethylene Oxide Sterilization (EtO) to ensure sterility of medical devices.

A: Ultra-thin-wall PTFE Liner Aokeray is available in a maximum length of 86 inches (2,184.4 mm), which allows for flexibility and applicability in the manufacture of long vascular catheters. Inquire FEP shrink tubing sample or custom

Aokeray EXTRUDED PTFE Ultra-thin-wall Liner video
